RTA Connector, Häfele Ixconnect SC 8/60
Produkta kods : 262.11.117
MPN: 262.11.117
Zīmols:
Vienība: gab
MPN: 262.11.117
Zīmols:
Vienība: gab
Cena:
0,70 €
Cena bez PVN
0,58 €

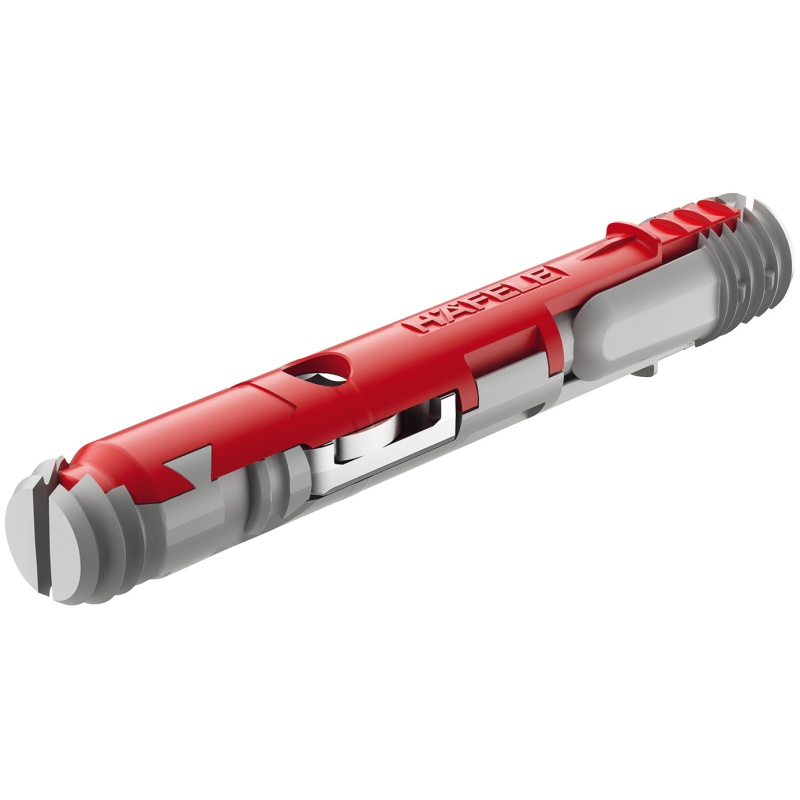

One-piece connector
Can also be used as cabinet connector for large furniture items
Quick and easy installation

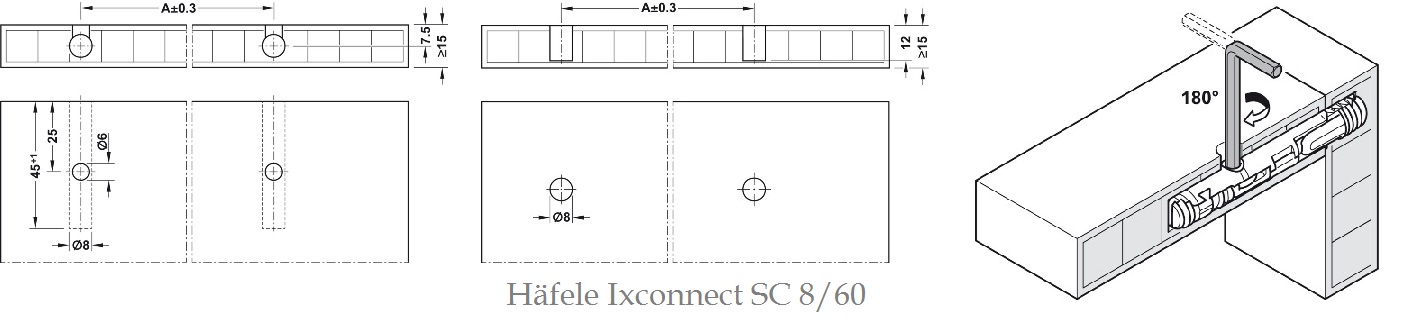

For concealed applications, only a Ø 6 mm drill hole for securing the connector is visible after installation
Separable connection
Area of application: For concealed cabinet connections with MDF and chipboard
For wood thickness: From 15 mm
For drill hole Ø 8 mm

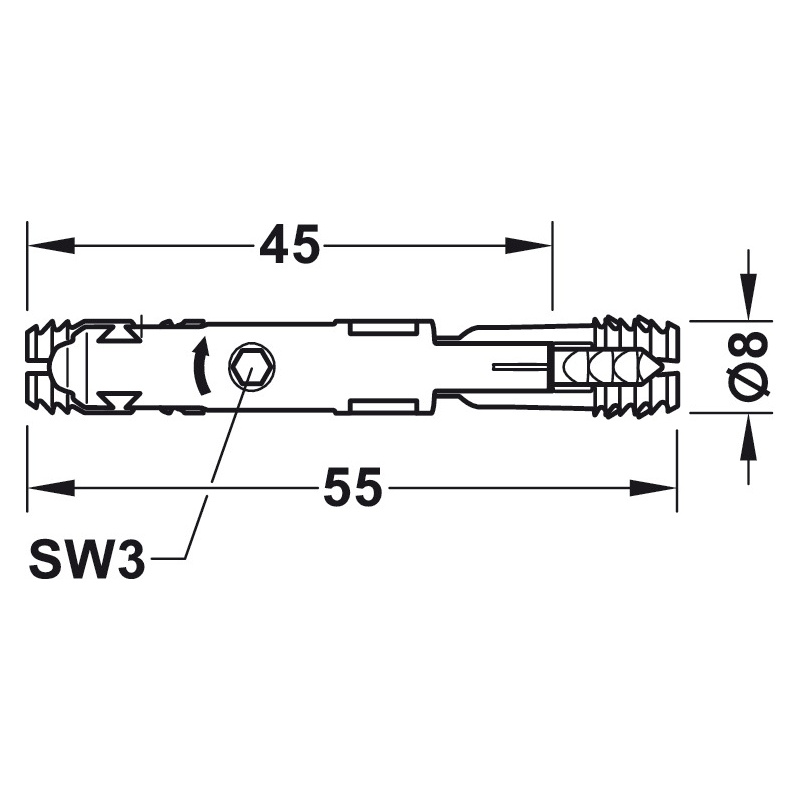

Installation: For press plug fitting into drill hole Ø 8 mm without tools, the connector expands with a 180° turn of the tightening screw with SW3 hexagon socket.
Häfele GmbH & Co KG
| Materiāls | Metāls, Plastmasa |
| Garums (mm) | 55 |
| Diametrs/šķērsgriezums (mm) | 8 |
